Creating and Using Client Certificates with MQTT and Mosquitto

Another popular way of authenticating clients is via client certificates and can be use as in addition or as an alternative to using user name and password authentication.



In cryptography, a client certificate is a type of digital certificate that is used by client systems to make authenticated requests to a remote server.

Client certificates play a key role in many mutual authentication designs, providing strong assurances of a requester’s identity. –Wiki

A client certificate identifies the client just like the server certificate identifies the server.

Normally certificates are created and distributed to each client that connects to the server/broker that requires them.

However you can share a client certificate between clients.

As with username and password authentication the broker dictates whether or not a clients need to supply a certificate.

You can use certificates in combination with username and password authentication.

Mosquitto Broker Configuration

The main two settings are:

  • require_certificates – Main setting tells client it needs to supply a certificate when set to true. Default false
  • use_identity_as_username– – When set to true it tells mosquitto not to use the password file but to take the username from the certificate (common name given to certificate when you create it). Default false
  • crlfile – You can create a certificate revocation file that is used to revoke a client certificate

Creating Self SIgned Client Certificates

The client and server must use the same CA (certificate Authority)  for the client and server certificates.

You create the client certificates using the same process as you used for creating a server certificate.

  1. Create a client key  don’t password protect.
  2. Create a client certificate request using the key.
  3. Use the CA key to sign the client certificate request from step 2.

Preparation –

You need an existing CA certificate and private key which you get when you follow the steps for creating your own self signed server certificate.

You need to use the same CA for the client certificates as the server certificate, and the broker needs to use SSL.

This is because  client certificates require an encrypted connection.

If you don’t have a CA certificate then you need create one using the following:

First create a key for the CA

Command is:  openssl genrsa -des3 -out ca.key 2048

create-ca-key

Note: it is OK to create a password protected key for the CA.

Next:  Create a certificate for the CA using the CA key that we created in step 1

Command is:  openssl req -new -x509 -days 1826 -key ca.key -out ca.crt

create-ca-certificate

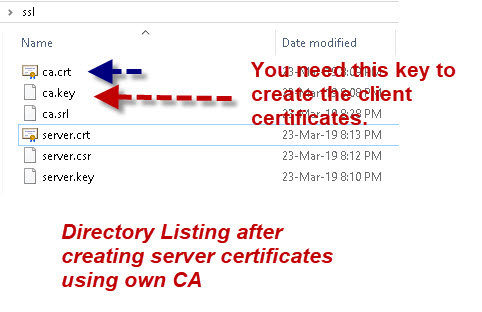

If you have followed the tutorial on creating server certificates then your folder should look like the one below:

ssl-directory

Step 1

The first step is to create a client private key.

The command is:

openssl genrsa -out client.key 2048

create-client key

Step 2

Next create a certificate request and use the client private key to sign it.

The command is:

openssl req -new -out client.csr -key client.key

You will be presented with a form that you need to complete.

The most important entry is the common name. This name can be used by the broker to identify the client in place of a username.

client-certificate-request
Normally this certificate would be sent to a Certificate authority, but we are our own Certificate authority so we complete the request to create a client certificate

Step 3

Now we complete the request and create a client certificate. The command is:

openssl x509 -req -in client.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out client.crt -days 360

create-client-certificate

This is now what our directory looks like

client-cetificates-final-folder

Using Client Certificates

To use client certificates the client requires three files:

  • ca.crt – The Certificate authority certificate
  • client.crt – The client certifcate file
  • client.key – The client private key

Publishing using Mosquitto_pub tool

The command is:

mosquitto_pub --cafile C:\ssl\ca.crt --cert C:\ssl\client.crt --key C:\ssl\client.key -d -h 192.168.1.157 -p 8883 -t test -m "hello there"


Note: You need to use the server name that is on the server certificate. If I use the IP address instead I get this error.

using-client-certificates-error

Publish Using Python

If you use Python you need to set the TLS settings  using:

client.tls_set('c:/ssl/ca.crt','c:/ssl/client.crt',\
'c:/ssl/client.key')

Publish Using Node-Red

On Node red you need to enable the SSL/TLS option in the broker settings.

tls-node-red

and then upload the client files as shown in the screen shot below:

client-certificates-node-red

Mosquitto Broker Connection

When the client connects to the broker and the use_identity_as_username is true then this is what you see:

mosquitto-broker-client-certs

Resources:

Example Mosquitto configuration file:

port 1883
log_type error
log_type notice
log_type information
log_type debug
#allow_anonymous false
#password_file /etc/mosquitto/pass.txt
#Extra Listeners
listener 8883
#ssl settings
cafile /home/steve/mos/certs/ca.crt
keyfile /home/steve/mos/certs/server.key
certfile /home/steve/mos/certs/server.crt
#client certifcate settings
require_certificate true
use_identity_as_username true

Terms Used

CA= Certificate Authority
Private Key = An encryption key that isn’t shared and needs to be stored securely
Public Key= An encryption key that is shared and doesn’t needs to be stored securely.
Certificate Request = An application for a certificate made to a certificate authority. Like a passport application

Shell Scripts

To save you typing I’ve created two Linux shell scripts that run the commands and create server and client certificates and keys as in this tutorial and the server certificate tutorial.
